Flywheel, Starter Motor & Ignition Coils for Mercury / Mariner (150 HP Xr-2 Marathon Magnum (V-6) (1978-1985 Combined Book)) Engine

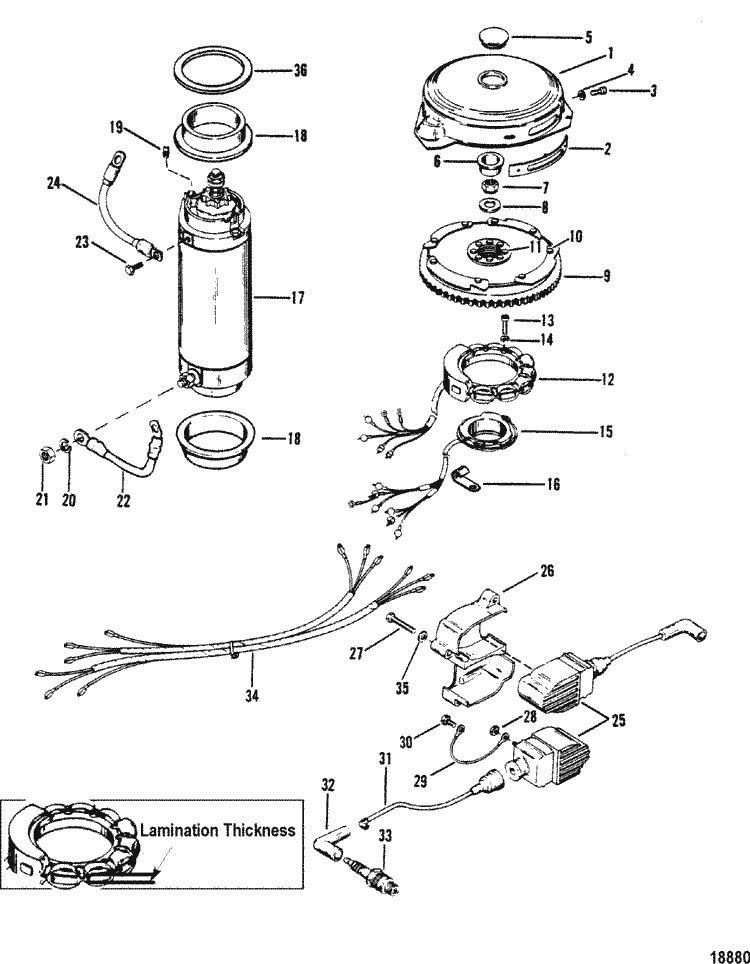

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
| #1 — 79918A 1 — COVER KIT (1 required per assembly) | ||
  |
|
79918A 1 - Flywheel Cover Kit [ More info ]
|
| #2 — 79022 — MARKER (1 required per assembly) | ||
  |
|
79022 - Timing Marker [ More info ]
|
| #3 — 37572 — SCREW, (.190-32 x .380) (2 required per assembly) | ||
  |
|
10-37572 - Screw [ More info ]
|
| #4 — 72761 — WASHER, (.203 x .562 x .060) Stainless Steel (2 required per assembly) | ||
  |
|
12-72761 - Washer, (.203 X .562 X .060) Stainless Steel [ More info ]
|
| #5 — 89219 — PLUG (1 required per assembly) | ||
  |
|
|
  |
|
19-89219001 - Plug [ More info ] Unavailable |
| #6 — 45907 — PLUG, Yellow (1 required per assembly) | ||
  |
|
|
| #7 — 52901 — NUT, (.625-18) (1 required per assembly) | ||
  |
|
11-52901 - Nut (5/8-18) [ More info ]
|
| #8 — 68229 — WASHER, (.641 x 1.250 x .190) (1 required per assembly) | ||
  |
12-68229 - Washer, (.641 X 1.250 X .190), Flywheel Nut [ More info ] Unavailable |
|
  |
|
12-33001 - Washer, Flywheel Nut [ More info ]
|
| #9 — NLA — No Longer Available, Flywheel (1 required per assembly) — (USE WITH 50-64975 OR 50-72467) | ||
  |
|
NLA - No Longer Availab [ More info ] Unavailable |
| #9 — 7555A 8 — FLYWHEEL (1 required per assembly) — (USE WITH 50-77141 OR 50-79472) | ||
  |
257-7555A 8 - Flywheel [ More info ] Unavailable |
|
  |
271-817632A 9 - Flywheel Kit [ More info ] Unavailable |
|
  |
|
271-859238A 9 - Flywheel Kit [ More info ] Unavailable |
| #10 — 32417 — SCREW, (.250-28 x .625) (8 required per assembly) | ||
  |
|
10-32417 - Screw - Priced Individually [ More info ]
|
| #11 — 68997 — SCREW, (.312-24 x .750) (8 required per assembly) | ||
  |
|
10-68997 - Screw, NLA [ More info ]
|
| #12 — 5454A 7 — STATOR ASSEMBLY (1 required per assembly) | ||
  |
|
398-5454A 7 - Stator Assembly [ More info ]
|
  |
|
18-5857 - Stator 398-5454A7 [ More info ]
|
  |
|
18-5854-1 - Stator, Mercury [ More info ]
|
| #13 — 75840 — SCREW, (#10-24 x .880) (4 required per assembly) | ||
  |
|
10-75840 - Screw [ More info ]
|
| #14 — 26996 — LOCKWASHER, (#10) Stainless Steel (4 required per assembly) | ||
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #15 — 96455A 9 — PLATE ASSEMBLY, Trigger (1 required per assembly) | ||
  |
|
96455A 9 - Trigger [ More info ]
|
  |
|
18-5798-1 - Trigger V6 Mercury 96455A9 96455A11 [ More info ]
|
| #16 — 61001 — J CLIP (1 required per assembly) | ||
  |
|
54-61001 - J Clip [ More info ]
|
| #17 — 72467 — STARTER MOTOR ASSEMBLY (1 required per assembly) — (AMER. BOSCH #10652-21-M030SM) | ||
  |
50-72467 - Starter [ More info ] Unavailable |
|
  |
|
50-898265010 - Starter Motor [ More info ] Unavailable |
  |
|
18-5636 - Outboard Starter [ More info ]
|
  |
|
5377 - Starter, 50-57465A1 & 72467 [ More info ]
|
| #17 — 79472 — STARTER MOTOR ASSEMBLY (1 required per assembly) — (AMER. BOSCH #17183-28-M030SM) | ||
  |
50-79472 - Starter [ More info ] Unavailable |
|
  |
50-79472 1 - Starter [ More info ] Unavailable |
|
  |
50-884238T - Starter Motor [ More info ] Unavailable |
|
  |
50-79472T 2 - Starter Motor [ More info ] Unavailable |
|
  |
|
50-893893 - Starter Motor [ More info ] Unavailable |
  |
|
18-5608 - Starter, 50-79472 [ More info ]
|
  |
|
5380 - Starter, 50-79472 1 [ More info ]
|
| #17 — 77141 — STARTER MOTOR ASSEMBLY (1 required per assembly) — (AMER. BOSCH #14916-24-MO3OSM) | ||
  |
50-77141 - Starter Motor [ More info ] Unavailable |
|
| #17 — 64975 — STARTER MOTOR ASSEMBLY (1 required per assembly) — (PRESTOLITE #MJL-4003B) | ||
  |
50-64975 - Starter [ More info ] Unavailable |
|
| #18 — 56703 — COLLAR (2 required per assembly) | ||
  |
56703 - Collar [ More info ] Unavailable |
|
  |
23-8M0001391 - COLLAR [ More info ] Unavailable |
|
  |
|
23-8M0034918 - Collar [ More info ]
|
| #19 — 68042 — STOP, Rubber (2 required per assembly) | ||
  |
68042 - Rubber Stop [ More info ] Unavailable |
|
  |
|
8M0043376 - Stop [ More info ]
|
| #20 — 26992 — LOCKWASHER, (.250) Stainless Steel (1 required per assembly) | ||
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #21 — 20890 — NUT, (.250-20) (1 required per assembly) | ||
  |
|
11-20890 - Nut (1/4 x20) [ More info ]
|
| #22 — 93389A 5 — WIRE ASSEMBLY, (6.50 Inches) Yellow (1 required per assembly) | ||
  |
|
84-93389A 5 - Wire Assembly [ More info ] Unavailable |
| #22 — 93389A 8 — WIRE (1 required per assembly) — (YELLOW-8-1/4") | ||
  |
|
84-93389A 8 - Wire Assembly, NLA [ More info ]
|
| #23 — 69035 — SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel (1 required per assembly) | ||
  |
|
10-69035 - Screw/LockWasher [ More info ]
|
| #24 — 93388A 1 — CABLE ASSEMBLY, (6.00 Inches) Black (1 required per assembly) | ||
  |
|
84-93388A 1 - Cable Assembly [ More info ]
|
| #25 — 5288A 2 — COIL ASSEMBLY, Ignition (6 required per assembly) — (ORANGE) | ||
  |
339-5288A 2 - Coil [ More info ] Unavailable |
|
  |
339-5288T 2 - Coil [ More info ] Unavailable |
|
  |
|
300-8M0166172 - Ignition Coil [ More info ] Unavailable |
| #25 — 7370A13 — COIL ASSEMBLY, Ignition (6 required per assembly) — (NAVY BLUE) | ||
  |
339-7370A13 - Ignition Coil [ More info ] Unavailable |
|
  |
339-832757A 4 - Ignition Coil [ More info ] Unavailable |
|
  |
|
18-5186 - Ignition Coil 339-7370A13 [ More info ]
|
  |
|
8M0230859 - Ignition Coil [ More info ]
|
| #26 — 67614 — COVER (3 required per assembly) | ||
  |
|
67614 - Ignition Coil Cover [ More info ] Unavailable |
| #27 — 88447 — SCREW, (.190-32 x 1.62) (12 required per assembly) | ||
  |
|
10-88447 - Screw - Priced Individually [ More info ]
|
| #28 — 45076 — NUT, (#10-32) Brass (12 required per assembly) | ||
  |
|
11-45076 - Nut (#10-32) (brass) [ More info ]
|
| #29 — 88807A 6 — CABLE ASSEMBLY, (3.50 Inches) Black (6 required per assembly) | ||
  |
|
84-88807A 6 - Wire Assembly [ More info ]
|
| #30 — 68513 — SCREW, (#10-32 x .375) Stainless Steel (6 required per assembly) | ||
  |
|
10-68513 - Screw [ More info ]
|
| #31 — 813715A 1 — LEAD WIRE (6 required per assembly) | ||
  |
|
84-813715A 1 - Ignition Cable Assembly [ More info ]
|
  |
|
18-5228-1 - Spark Plug Wire, 9 Inch, 84-813715A1 [ More info ]
|
  |
|
18-5227-1 - Spark Plug Wire, 9 Inch Pre-made [ More info ]
|
| #32 — 63709A 1 — BOOT/TERMINAL KIT (6 required per assembly) | ||
  |
|
85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ]
|
| #33 — 97180 — SPARK PLUG (6 required per assembly) — (NGK-BUHW) | ||
  |
33-97180 - NGK BUHW Note: Priced Individually [ More info ] Unavailable |
|
  |
33-97180Q - NGK Spark Plug Buhw - Priced Individually [ More info ] Unavailable |
|
  |
|
BUH - NGK Spark Plug, 2422 [ More info ]
|
  |
|
L76V - Champion Spark Plug ( #827M) [ More info ]
|
  |
|
33-896329827 - Spark Plug - L76V - Priced Individually [ More info ] Unavailable |
| #33 — 13686 2 — SPARK PLUG (6 required per assembly) — (NGK-BU8H) | ||
  |
33-13686 2 - NGK BU8H Note: Priced Individually [ More info ] Unavailable |
|
  |
|
33-13686Q - NGK BU8H - Priced Individually [ More info ] Unavailable |
  |
|
BU8H - NGK Spark Plug, 6431 [ More info ]
|
  |
|
L6VC - CHAMPION Spark Plug (#885M) [ More info ]
|
| #34 — 69738A 7 — HARNESS ASSEMBLY, COIL TO SWITCH BOX (1 required per assembly) — (#2,4,&6) | ||
  |
|
84-69738A 7 - Ignition Coil Harness, Three Wire [ More info ]
|
  |
|
18-99254 - Ignition Coil Primary Wire Set 6 Cylinder, 934-9738 [ More info ]
|
| #34 — 69739A 2 — HARNESS ASSEMBLY, COIL TO SWITCH BOX (1 required per assembly) — (#1,3 & 5) | ||
  |
|
84-69739A 2 - Ignition Coil Harness, Three Wire [ More info ]
|
| #35 — 30164 — WASHER, (.192 x .375 x .0312) Stainless Steel (12 required per assembly) | ||
  |
|
12-30164 - Washer, (.192 X .375 X .0312) [ More info ]
|
| #36 — 56774 — SPACER (AR required per assembly) | ||
  |
|
23-56774 - Spacer, NLA [ More info ] Unavailable |
